Perfect Welding

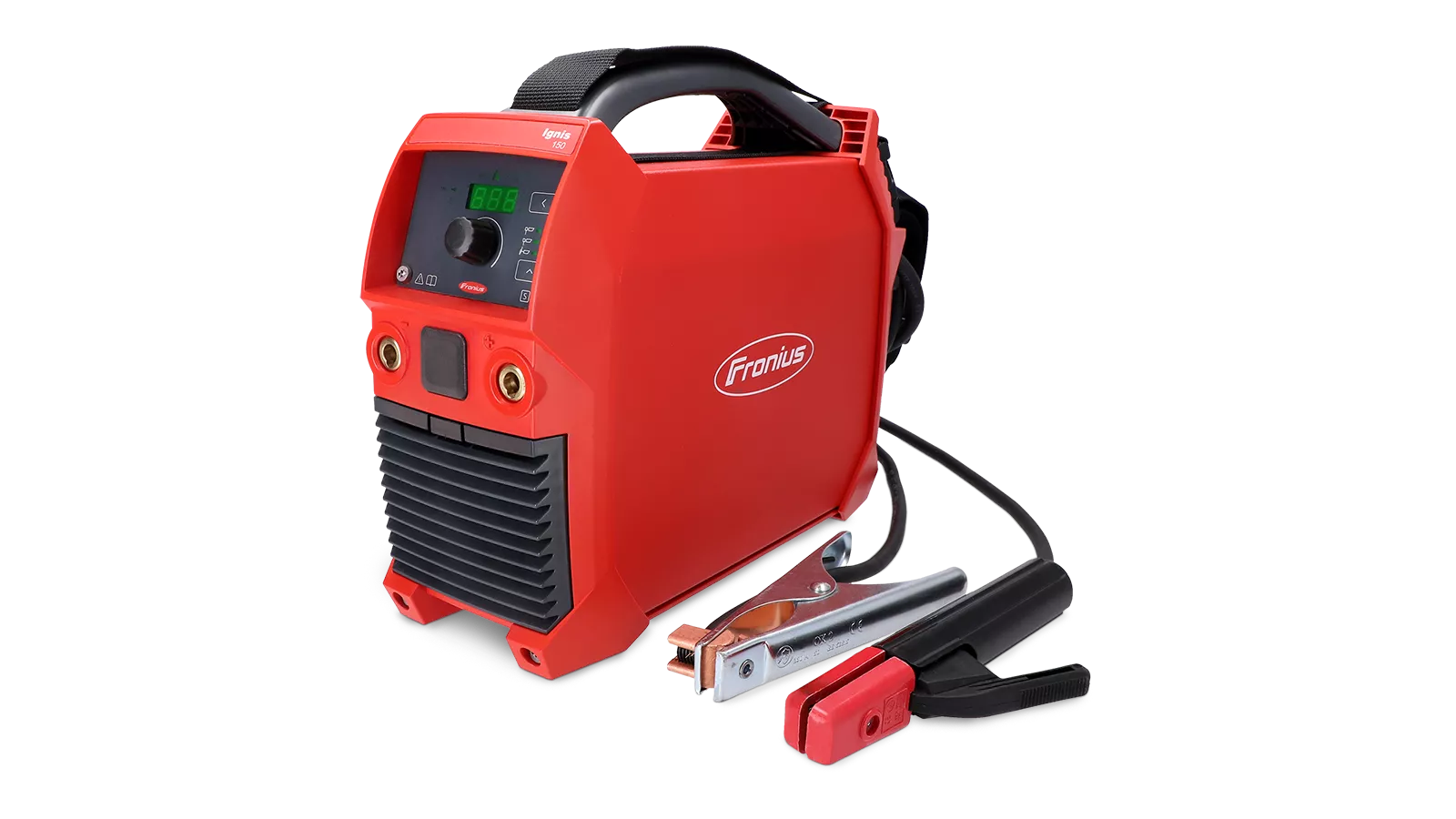

Ignis

Please choose your desired product.

Product details

General Data

Welding current min.10 A
Welding current max.150 A
Operating voltage min.20,4 V
Open-circuit voltage96 V
Degree of protectionIP23
Length365 mm
Width130 mm
Height285 mm
Weight8,1 kg

Contact

Would you like to find out more about the product?

Find out more about the features of the Ignis welding machine.
Current firmware and software updates for the Ignis.

Function overview

Functions
Ignis 150 Ignis 150 TIG Ignis 180 /
180 XT
Ignis 180 TIG /
180 TIG XT

 HotStart x x x x
 SoftStart x x x x
 Anti-stick x x x x
 MMA Pulse x x x x
 TAC tacking function
x
x
 TIG Comfort Stop x x x x
 TIG Pulse
x
x
 TIG Multi Connector
x
x
 TIG welding torch operation
x
x
 Remote control operation
x
x
 Time shutdown
(300 s/900 s/off)
x x x x
 TrackingArc x x x x
 XT variant

x x
